ESP Cross Coupling Cable Protector
Core Structure and Material Advantages

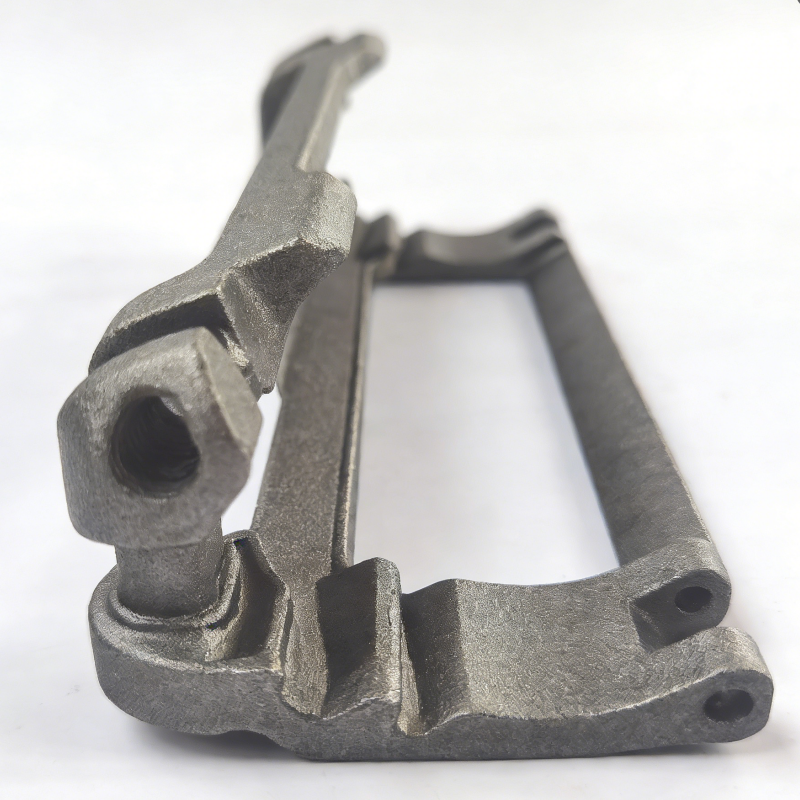

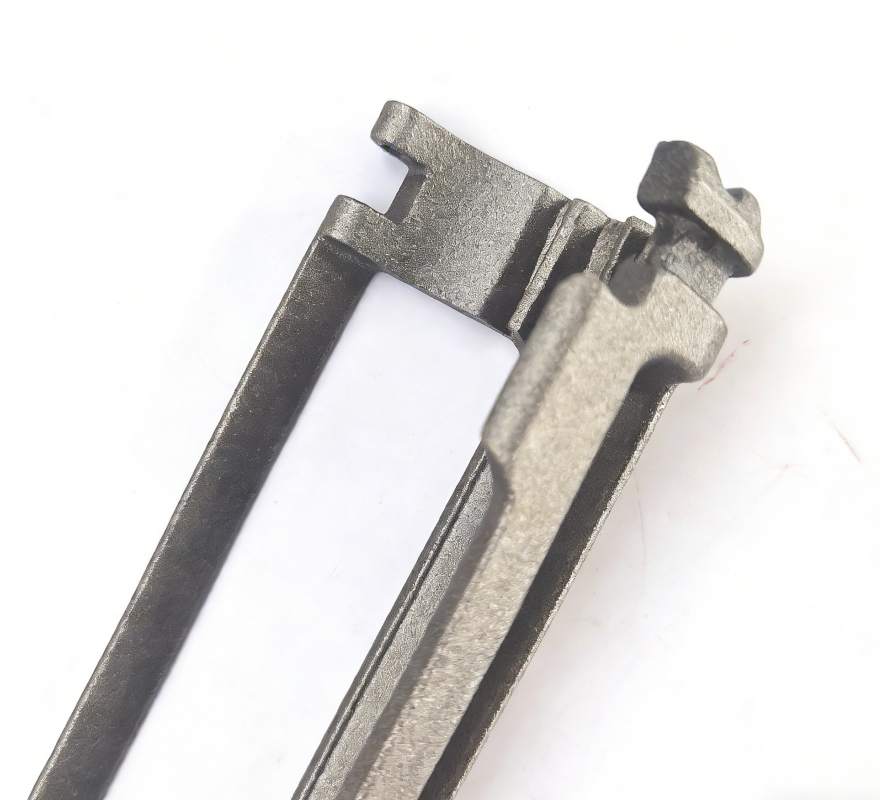

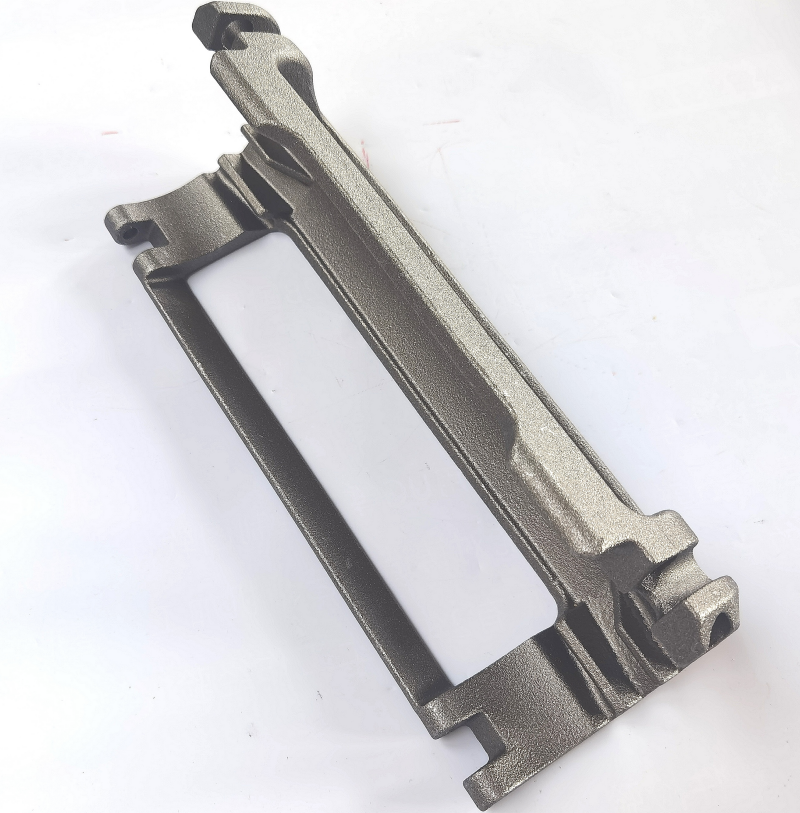

The product adopts an all-metal integral casting structure, and the core material is carbon steel (ASTM A216 WCB grade), stainless steel (304, 316 grade) or nickel-chromium alloy steel that meets NACE MR 01-75/95 standards. It can be flexibly customized according to working conditions such as sour medium, downhole temperature and pressure, with excellent corrosion resistance, impact resistance and structural stability, suitable for harsh downhole environments such as acid gas wells. The key structural design highlights professional protection, including:
-
Optimized cable support "suspension" design minimizes the risk of cable damage due to extrusion. At the same time, the streamlined leading edge profile can effectively avoid downhole sticking hazards and ensure smooth running and retrieval of the pipe string;
-
The bolt head is aligned with the protective rib, which greatly improves the wear resistance of the vulnerable bolts. Combined with the interlocking structure of the clamping arm and the casting body, it completely eliminates the shear stress on the bolts and prevents the bolts from loosening and falling off;
-
Low-profile clamping arm design avoids damage to the clamping arm due to downhole collision through collar offset and casting body shielding. At the same time, it reduces the overall outer diameter, increases the gap with the inner wall of the casing, and improves downhole adaptability;
-
Integral assembly structure without loose parts fundamentally eliminates the risk of parts falling into the wellbore. All fasteners adopt pre-engagement design, which is convenient and efficient to install, can significantly shorten drilling operation time and reduce labor costs;
-
Some models are equipped with an elastic friction pad clamping system, which achieves anti-slip and anti-rotation, and adopts a non-destructive clamping method to avoid squeezing and damaging the cable conductor. The hinge part is reinforced by spot welding to further improve the overall structural integrity and service life of the product. Some products can be galvanized or electrophoretic coated to enhance rust resistance.

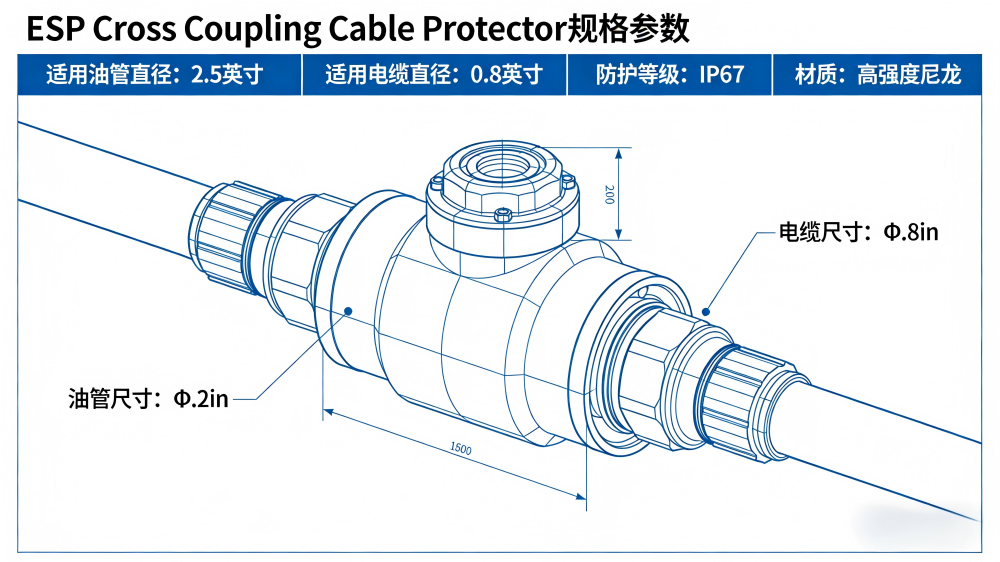

Key Performance and Specification Parameters
The product has passed strict performance tests, can bear 30 tons of axial load and 20 tons of lateral load, ensuring no slipping or deformation under complex downhole stress conditions. It can stably support at least 100 feet of ESP cables and control lines without cable slipping and crimping damage, meeting the requirements of bearing various axial and rotational forces during completion operations. Specification parameters can be customized on demand, and the core standard specifications cover:
-
Tubing adaptation size: covering 2-3/8″ to 13-3/8″, focusing on adapting to common specifications such as 2-7/8″, 3-1/2″, 4-1/2″, 6-3/8″, compatible with API standard and high-end tubing joints such as EUE, VAM Top and New VAM, and the adaptation size and structure can be flexibly customized according to the tubing model;
-
Cable adaptation range: compatible with #1, #2, #4, #6 and other specifications of round, flat or square ESP cables, control lines compatible with 1/4″, 3/8″, 0.43″ and other specifications of capillary pipelines, and also compatible with various pipeline types such as optical fibers, chemical injection pipelines and permanent pressure measurement pipelines. The multi-channel design can realize separate protection of various pipelines and avoid pipeline entanglement and wear;
-
Manufacturing process: adopts investment casting process (some models can adopt stamping process). Compared with traditional sand casting, it effectively eliminates casting defects, improves product dimensional accuracy, shape uniformity and geometric tolerance adaptability, ensures the fit with tubing and cables. All products have passed strict tests such as chemical composition test, mechanical performance test, Magnetic Particle Inspection (MPI) and slip test, meeting API standards and downhole operation safety requirements;
-
Reusability: the product can be fully recycled, and can be reused after simple renovation and replacement of a small number of accessories, which greatly reduces the user's equipment investment cost. Some products provide a 1-year quality guarantee service with perfect after-sales support.
Application Scenarios and Core Applications
The product is suitable for various downhole ESP systems, especially for complex working conditions such as artificial lift oil wells, sour oil and gas wells, and intelligent wells. Its core applications include but are not limited to:
-

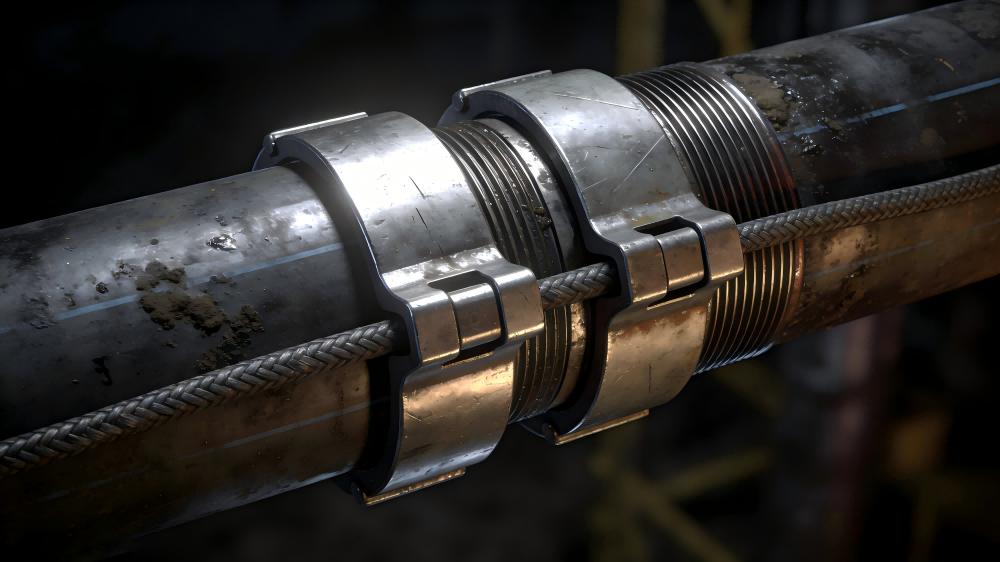

ESP cable protection: protect the power cable of the downhole ESP system from friction, extrusion and collision damage at the tubing collar, ensuring stable power transmission;
-

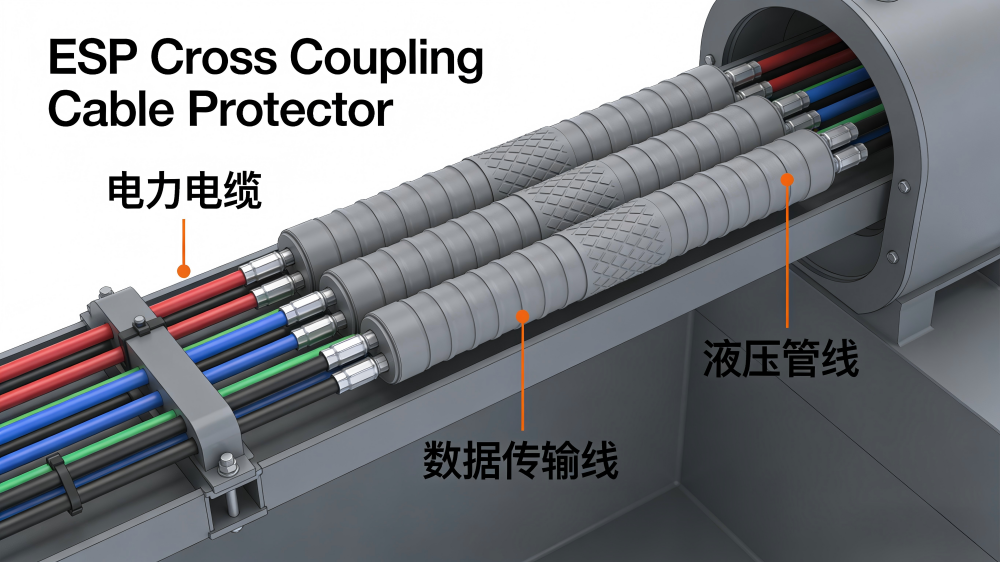

Multi-type pipeline protection: can simultaneously protect control lines, chemical injection pipelines, optical fibers, permanent pressure measurement pipelines, downhole safety valve control lines and encapsulated wire harnesses, adapting to multi-pipeline
